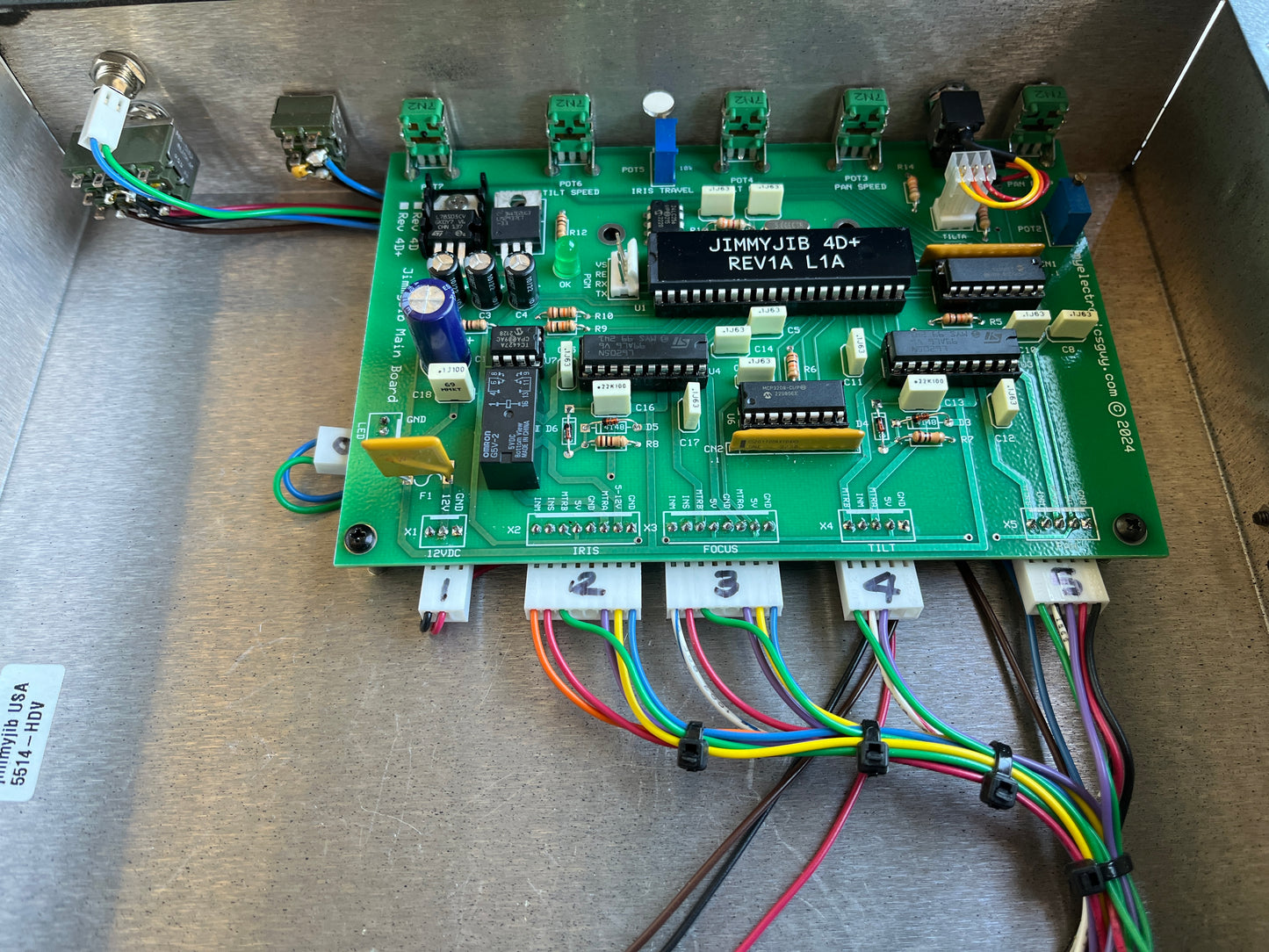

Upgrade Model 4D to Model 4D+ Controller Board

Upgrades your Model 4D to a Model 4D+ with extra features.

***Requires trade in of your Model 4D circuit board***

This circuit board replaces your existing Model 4D circuit board and provides new features!

(Board size measurement 6" x 4")

Circuit Board Common Features

• microprocessor based upgradeable firmware for future features
• 20 year proven technology
• same footprint/fits in existing units (4A, B, C case)
• backward compatible with legacy cable connections and controllers
• backward compatible with panel potentiometer placement
• record VTR start/stop support (REC)
• eliminates need for -12v and -5v circuits
• No longer requires a special power supply! Continue to use your legacy power supply or any standard, appropriately rated, 12 volt video supply or battery will work!
• Much more dependable!

Digital Pan & Tilt Motor Control (both models of boards)

• ‘PWM’ motor speed control vs. inefficient ‘linear amplifier’ in legacy systems (equals more torque!)
• ‘auto calibration’ of joystick on power up (no more adjusting tiny pots for creep/trim)
• New speed & ramp controls (pots are supported with metal structure (not just standing there)
• Ramp function operates better with 0-4 seconds of true linear ramping (both accel and decel)
• uses existing reverse motor control switches

Digital Focus & Iris Control unique to Model 4D - (Plug n Play)

• you get all the features above, plus
• compatible with existing Stanton lens motors (only)
• uses legacy lens analog focus and iris motors (but with PWM control)
• uses legacy lens connections and operation for zoom

Digital Focus & Iris Control unique to Model 4D+ - (Plug n Play)

• you get all the features above, plus
• supports Stanton Video Zoom, plus Tilta Nucleus M Focus and Iris motors or
• supports Tilta Nucleus M Zoom, Focus and Iris motors (switchable)

• Includes 8 pin Tajimi female zoom to XLR4 mini male foldback adapter cable
• Includes XLR4 mini male to LEMO 7 pin male Adapter Cable for Tilta bus
• Purchase Tilta Nucleus M motors and gears separately

***DOES NOT REQUIRE OUR BUZ3-J ADAPTER BOX***
