Model 4 Battery Box Upgrade to AC Power (add optional battery mounting plate)

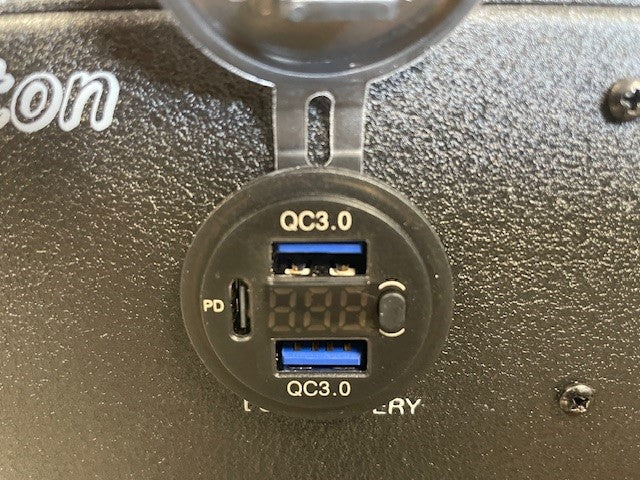

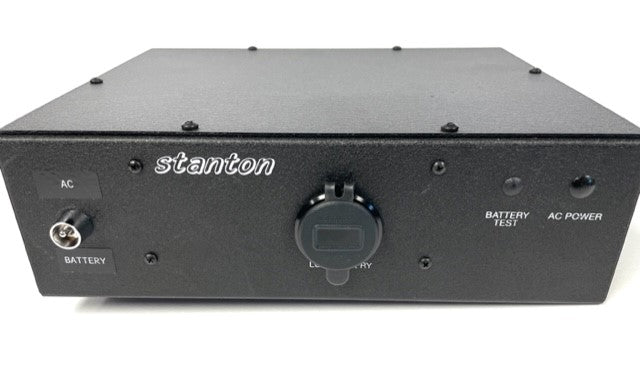

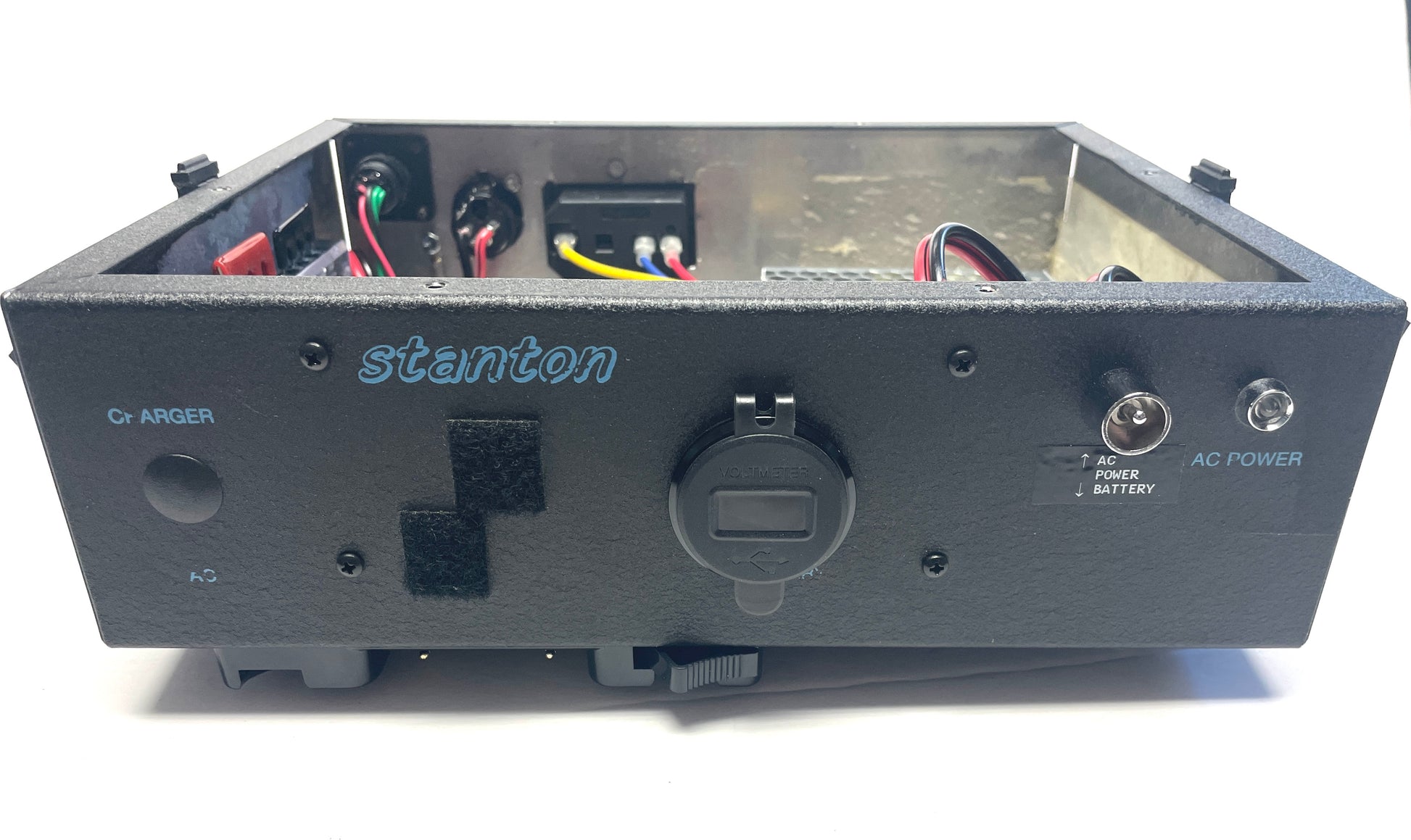

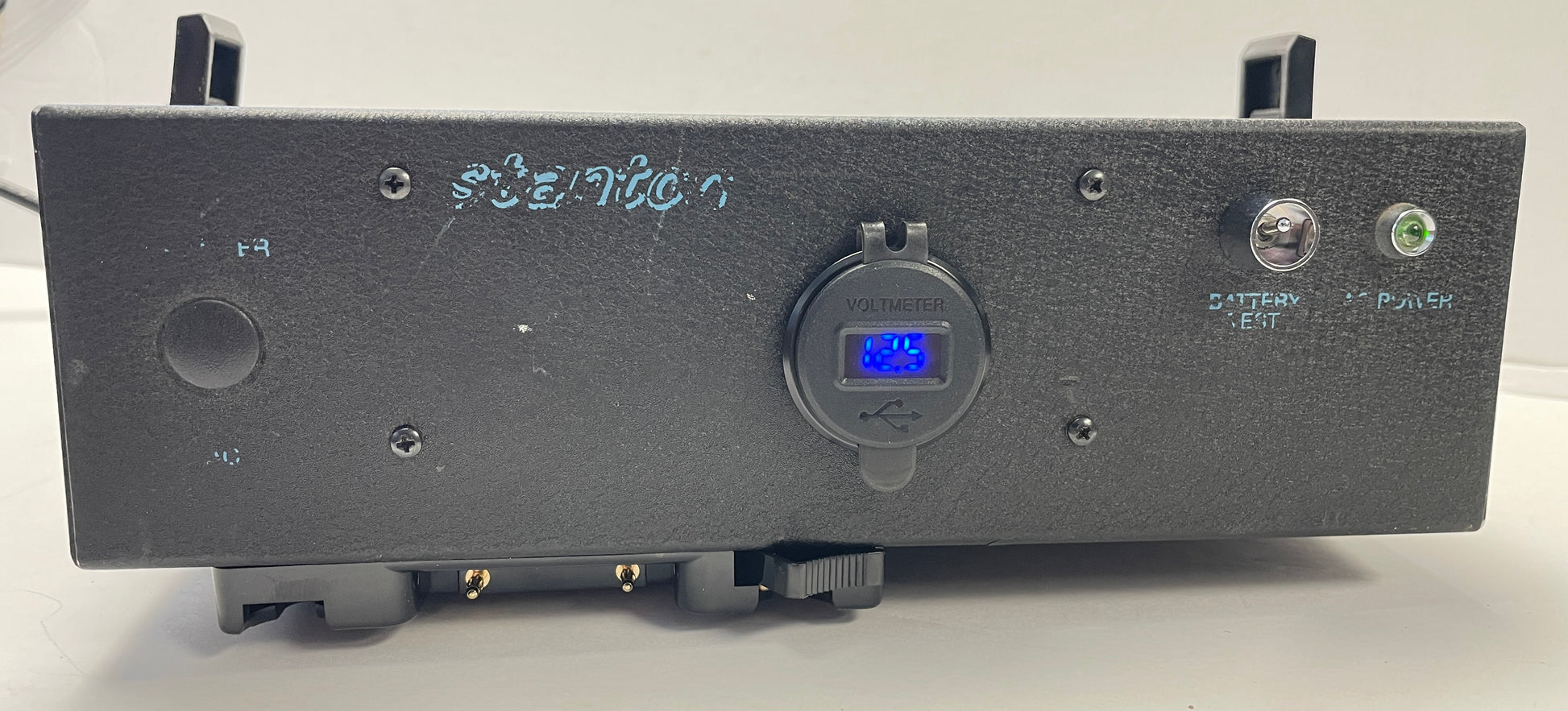

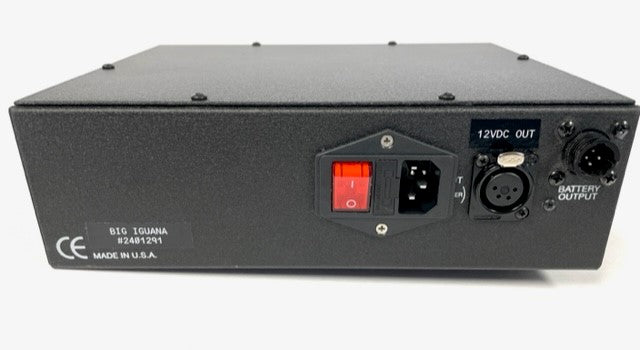

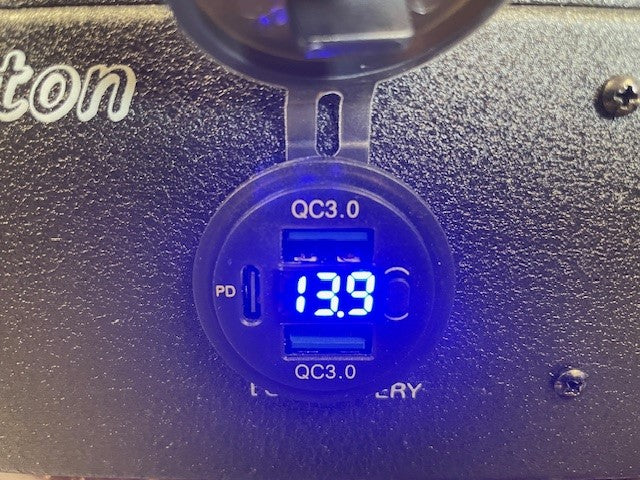

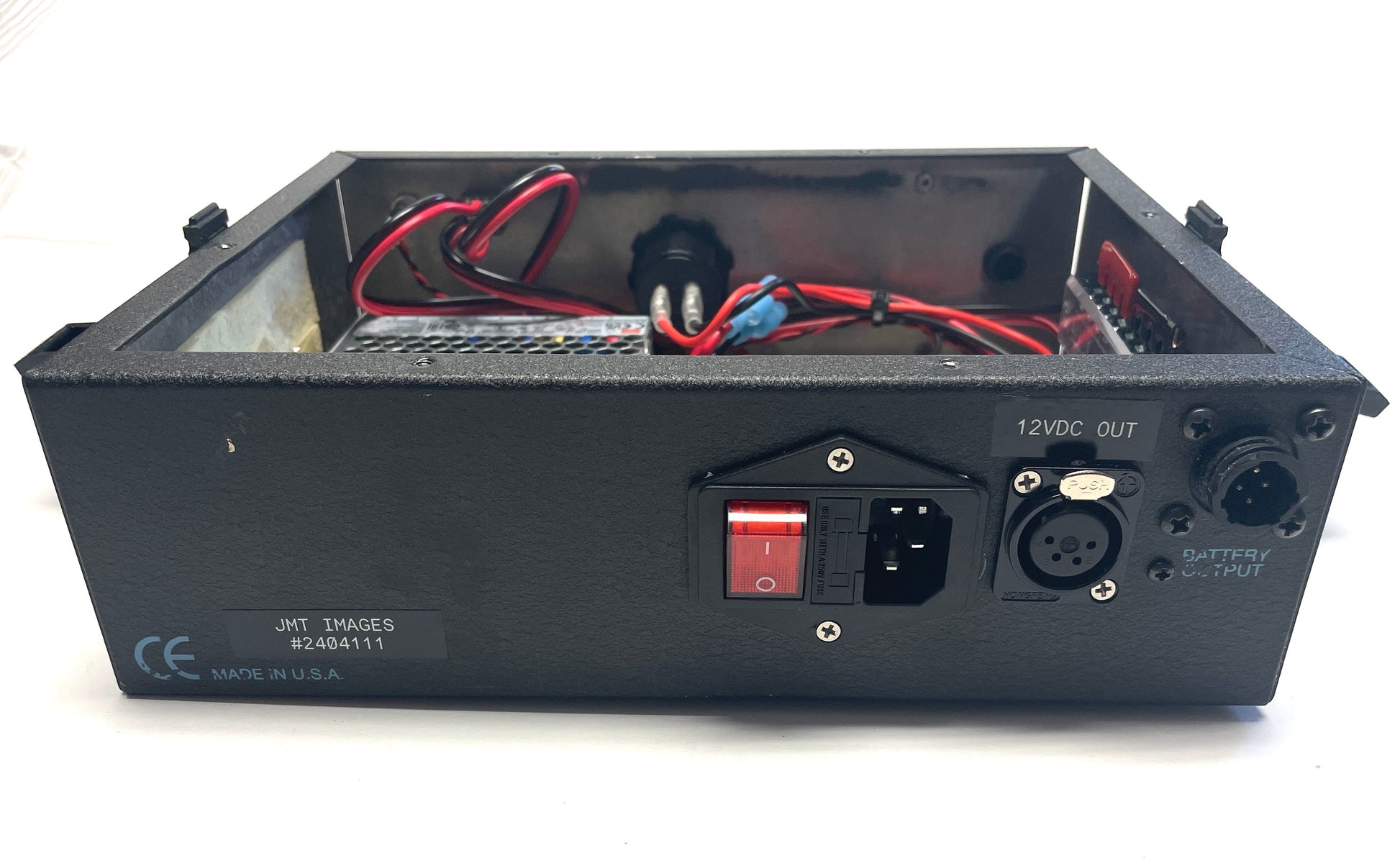

First, remove your (4) 6 volts batteries, then, send us your legacy battery box. Upon receipt, we remove your circuit breaker and charger circuitry from your battery box. We re-purpose your battery box by adding an IEC 115-230VAC switched inlet to the rear and an LED voltmeter w/ USB & USB-C outputs on the front, The switch, on the front, toggles between AC power and battery.

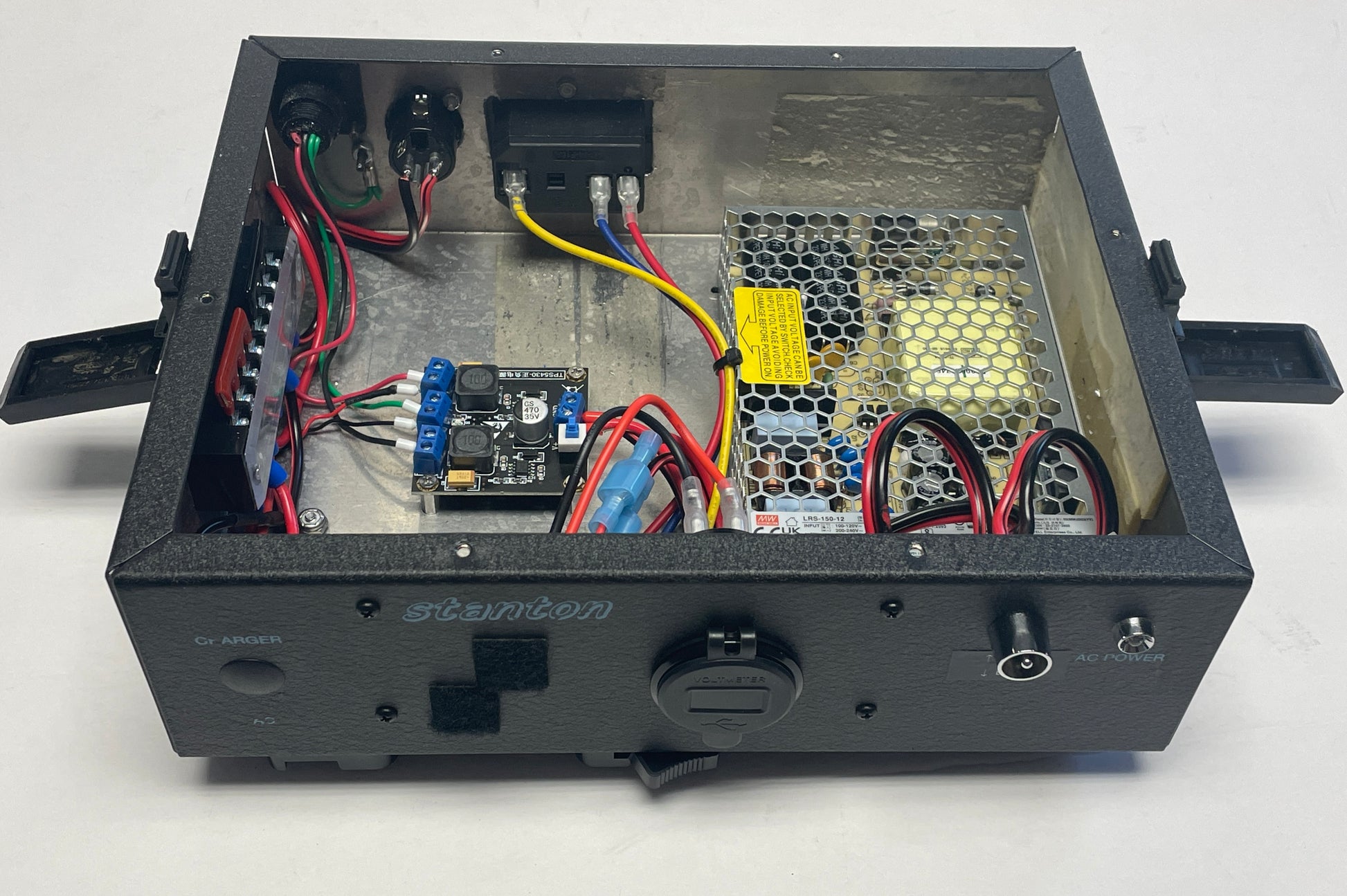

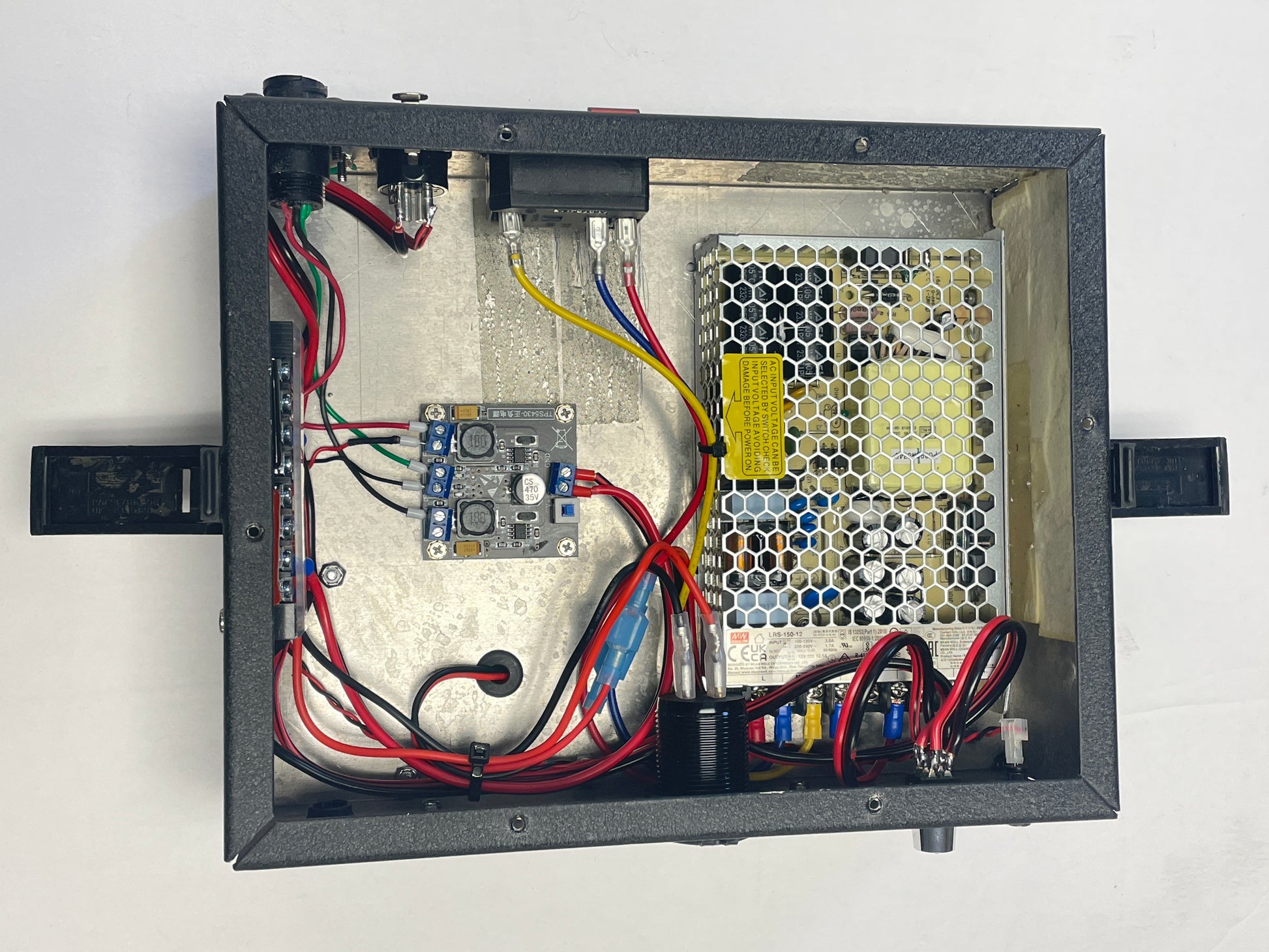

Inside, we add an AC to DC 12 volt 12 amp power supply, +- 12 volt converter board, power distribution terminal strip and an XLR4 female jack for 12VDC output to a monitor or other accessory. Optionally, we can equip with single or dual battery plates and/or dual output jacks, and other power cables. Ask about custom configurations! You’ll no longer need your elusive AC transformer supply!
Optional Items that can be added:
Power 3 Stud Mount

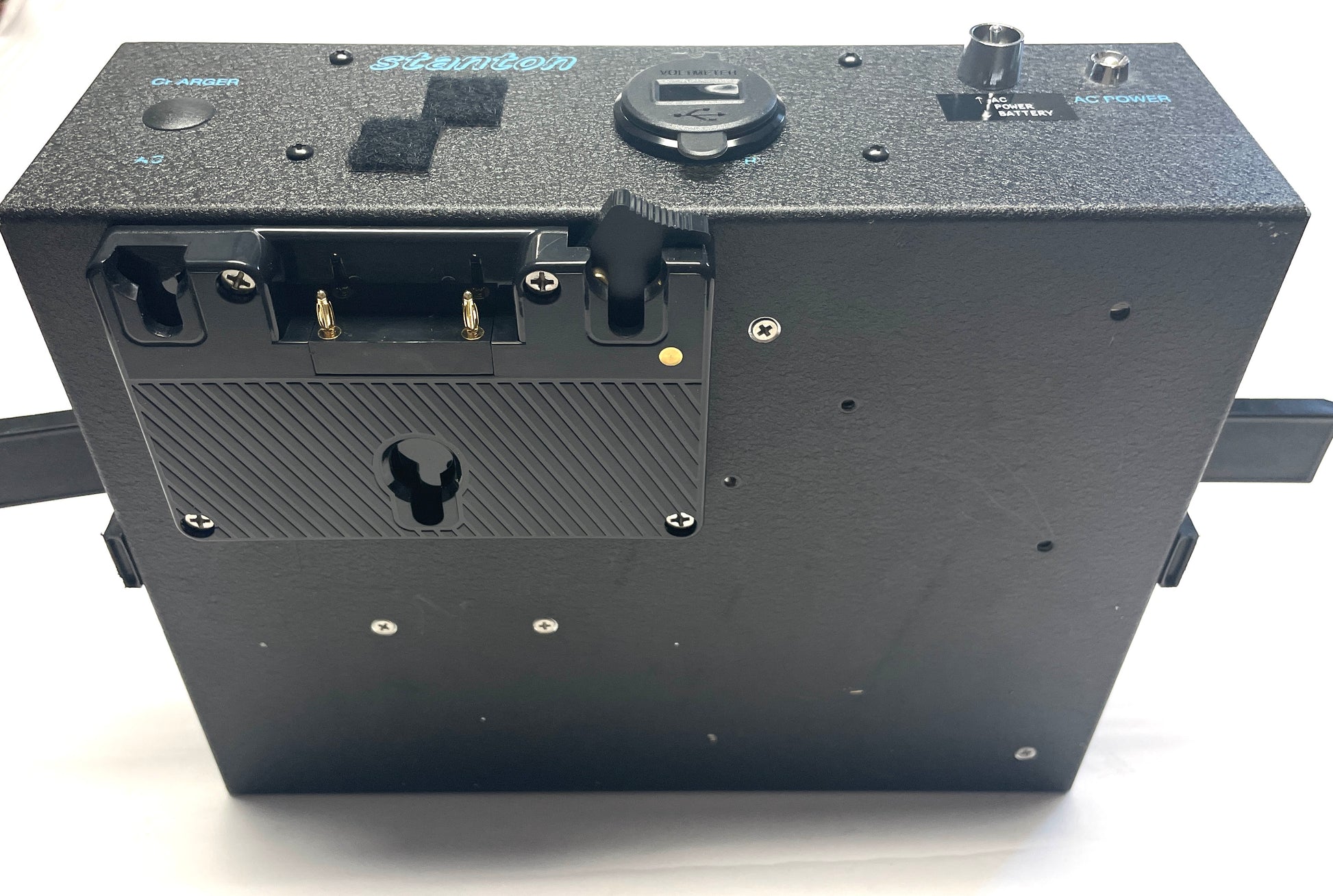

Anton Bauer 3 stud type Battery Mounting Plate
https://www.myelectronicsguy.com/products/power-3-stud
Power V Mount
V Mount style Battery Mounting Plate
https://www.myelectronicsguy.com/products/power-vmount
Power Cord UK
Power Cord 6 foot IEC to 3 blade (UK)
https://www.myelectronicsguy.com/products/power-cord-uk
Power Cord US (included as standard)
Power Cord 6 foot IEC to Edison (USA)
