JimmyJib Model 4D Replacement Controller Board

***NOT COMPATIBLE WITH OUR BUZ3-J ADAPTER BOXES***

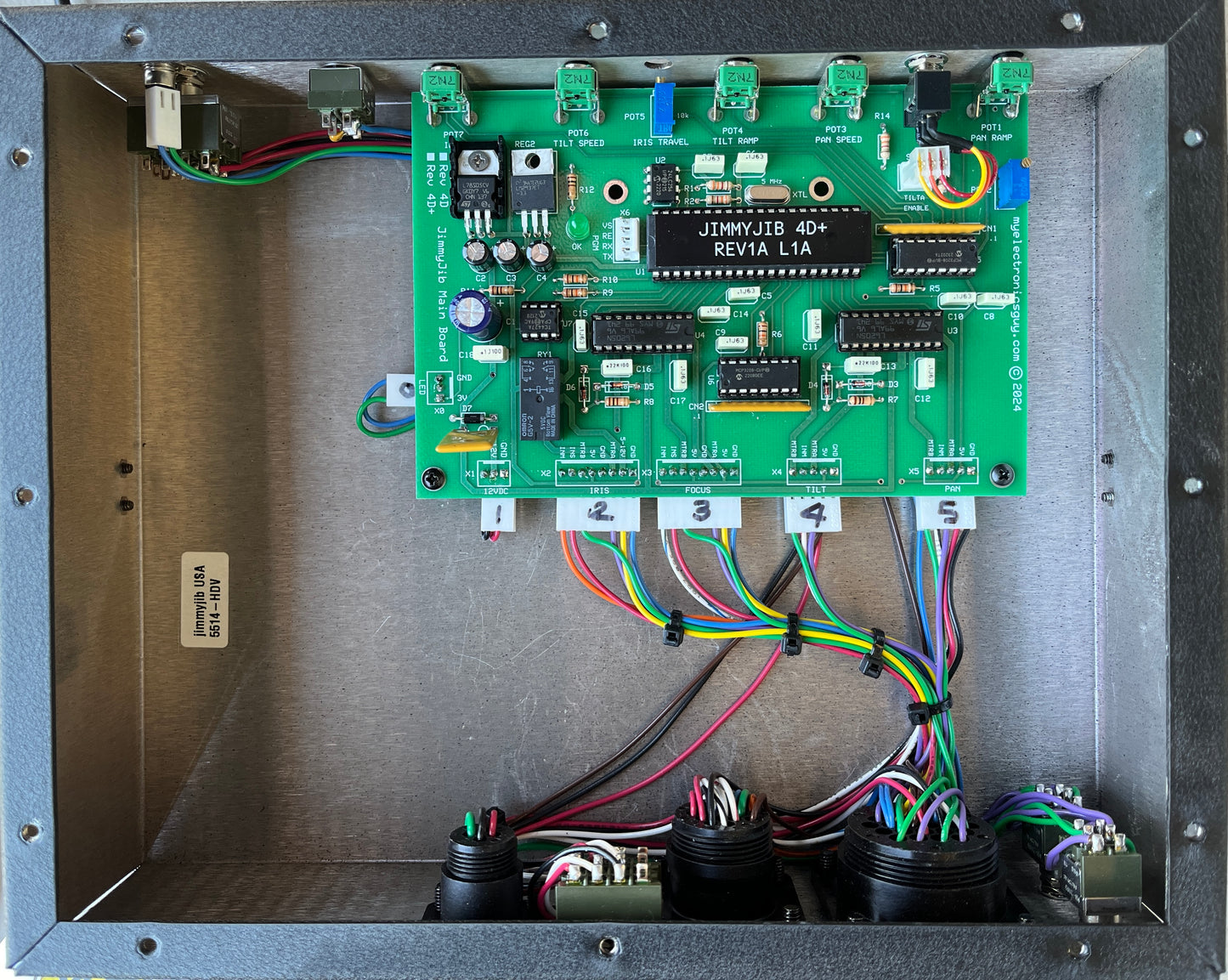

This circuit board replaces your existing OEM circuit board and provides new features, efficiency and reliability! (photo is of an old OEM board) This new board has not yet been created. Lead time approx 60 days from date of commencement.

(Board size measurement 6" x 4")

Circuit Board Common Features

• microprocessor based upgradeable firmware for future features
• 20 year proven technology
• same footprint/fits in existing units (4A, B, C case)
• backward compatible with legacy cable connections and controllers
• backward compatible with panel potentiometer placement
• record VTR start/stop support (REC)
• eliminates need for -12v and -5v circuits
• No longer requires a special power supply! Continue to use your legacy power supply or any standard, appropriately rated, 12 volt video supply or battery will work!
• Much more dependable!

Digital Pan & Tilt Motor Control (both models of boards)

• ‘PWM’ motor speed control vs. inefficient ‘linear amplifier’ in legacy systems (equals more torque!)
• ‘auto calibration’ of joystick on power up (no more adjusting tiny pots for creep/trim)
• New speed & ramp controls (pots are supported with metal structure (not just standing there)
• Ramp function operates better with 0-4 seconds of true linear ramping (both accel and decel)
• uses existing reverse motor control switches

Digital Focus & Iris Control unique to Model 4D - (Plug n Play)

• you get all the features above, plus
• compatible with existing Stanton lens motors (only)
• uses legacy lens analog focus and iris motors (but with PWM control)
• uses legacy lens connections and operation for zoom

***NOT COMPATIBLE WITH OUR BUZ3-J ADAPTER BOXES***
