BUZ3 Box for Special Apps
BUZ3 Box for Special Apps

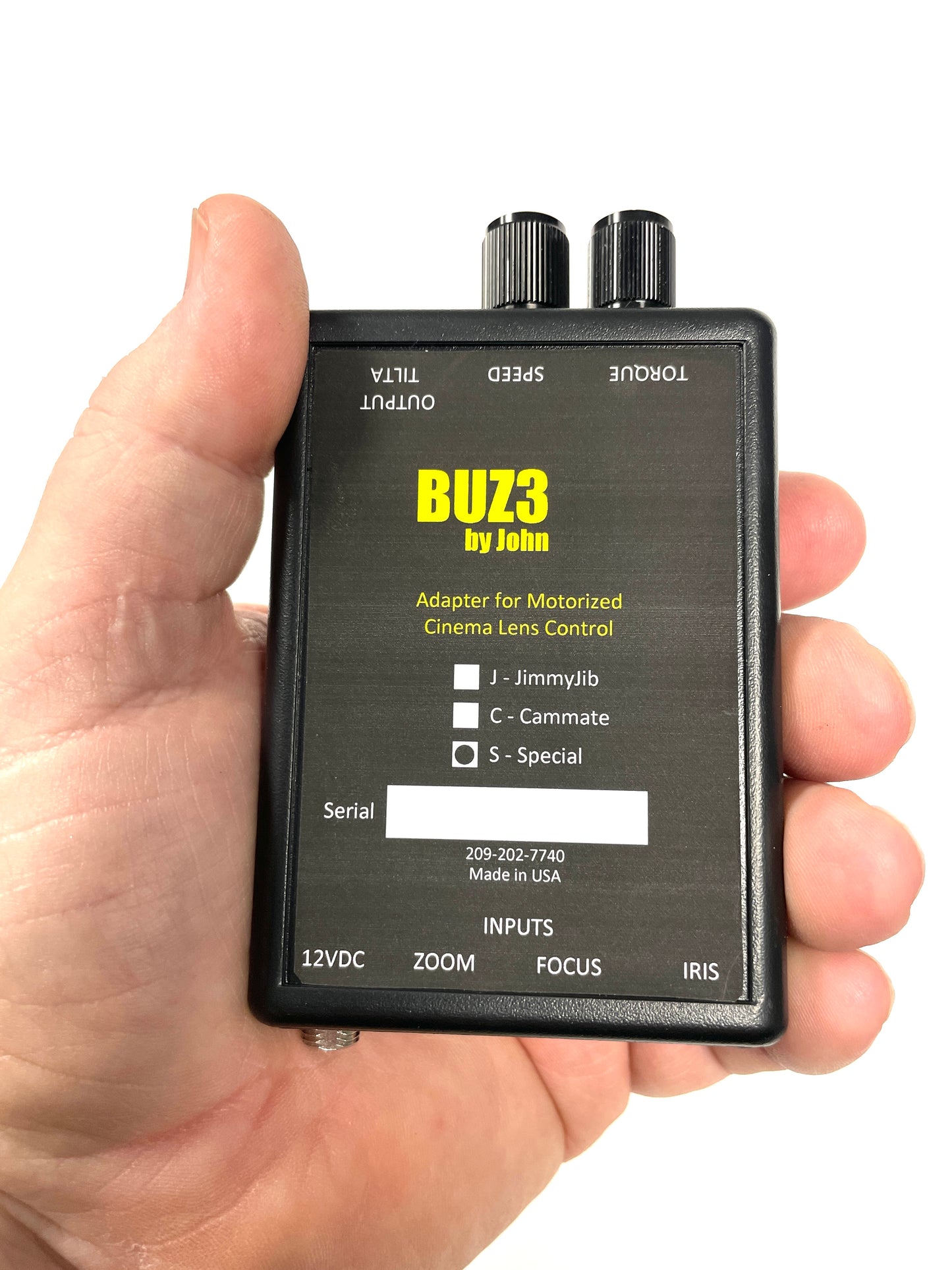

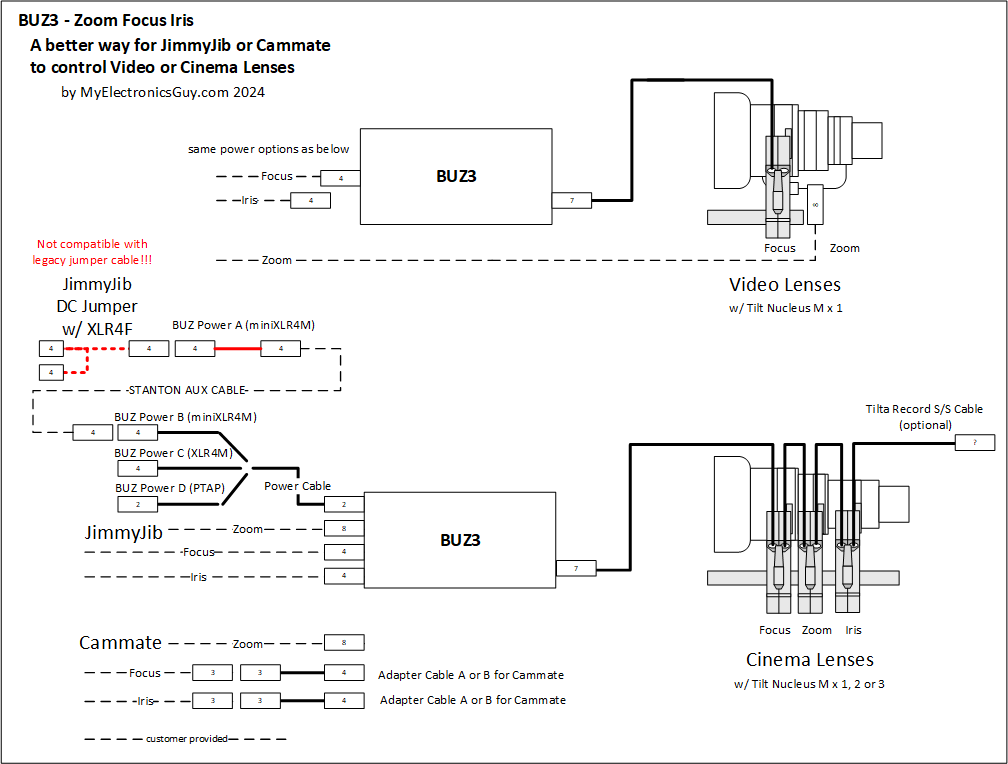

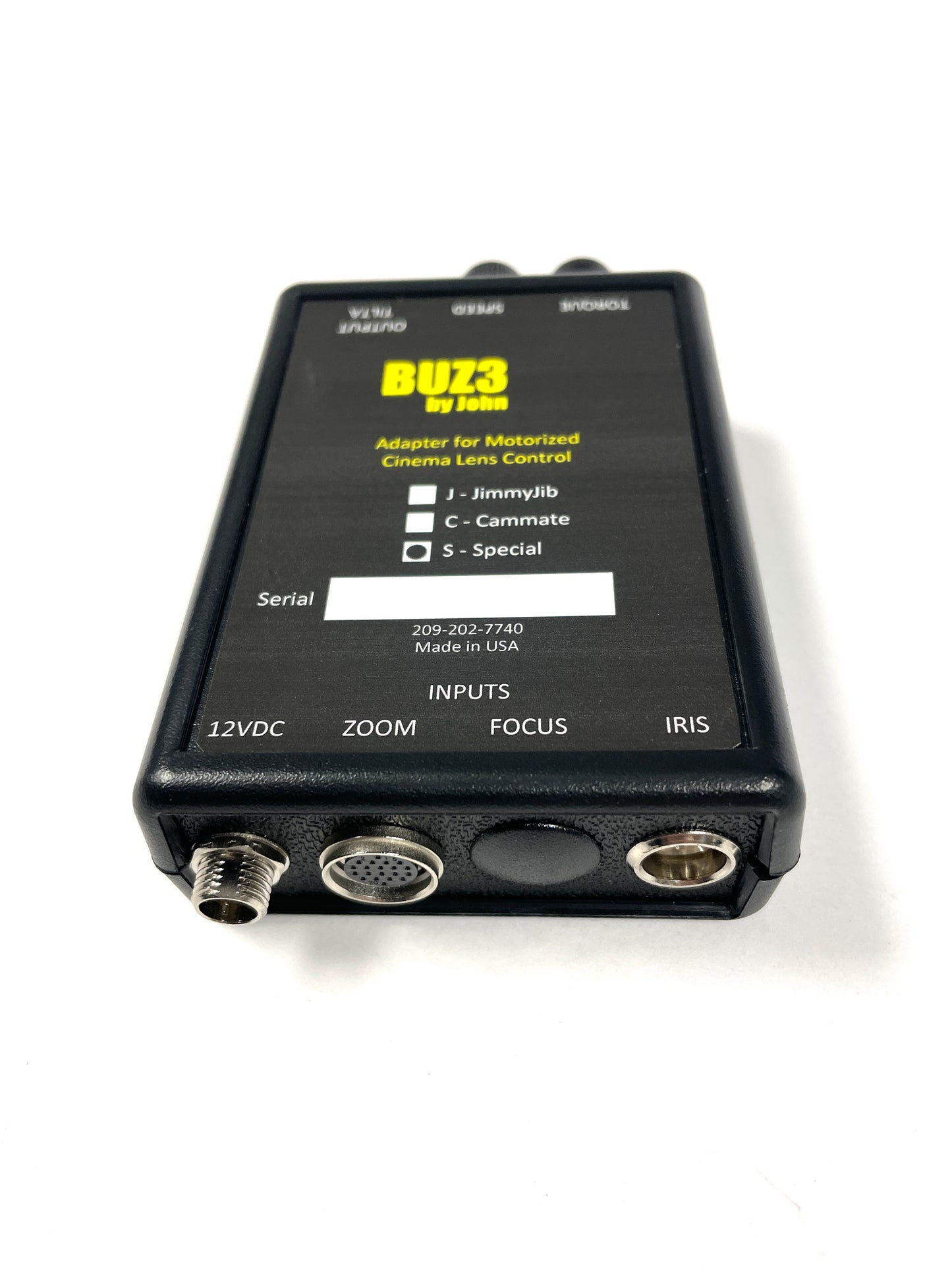

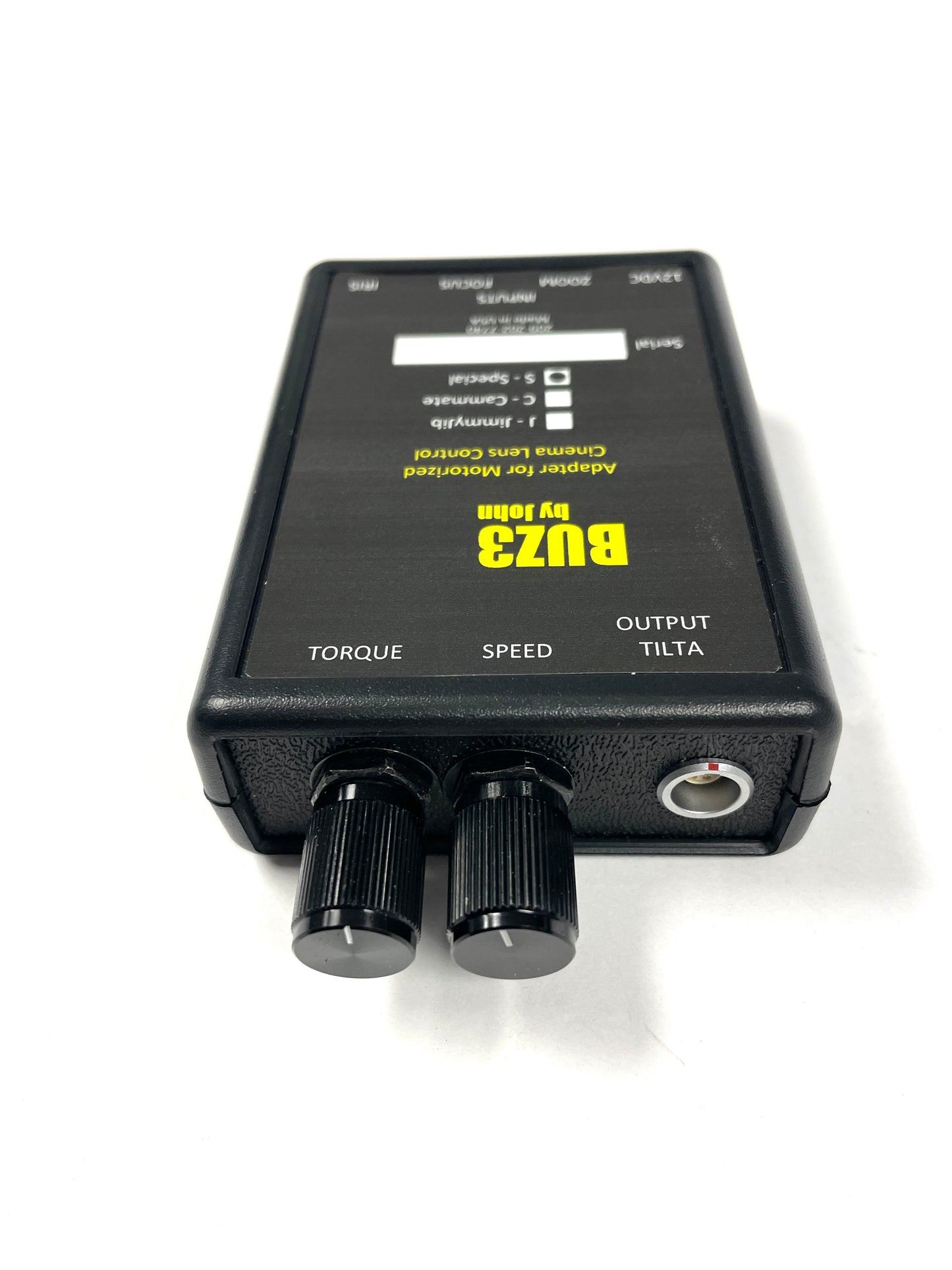

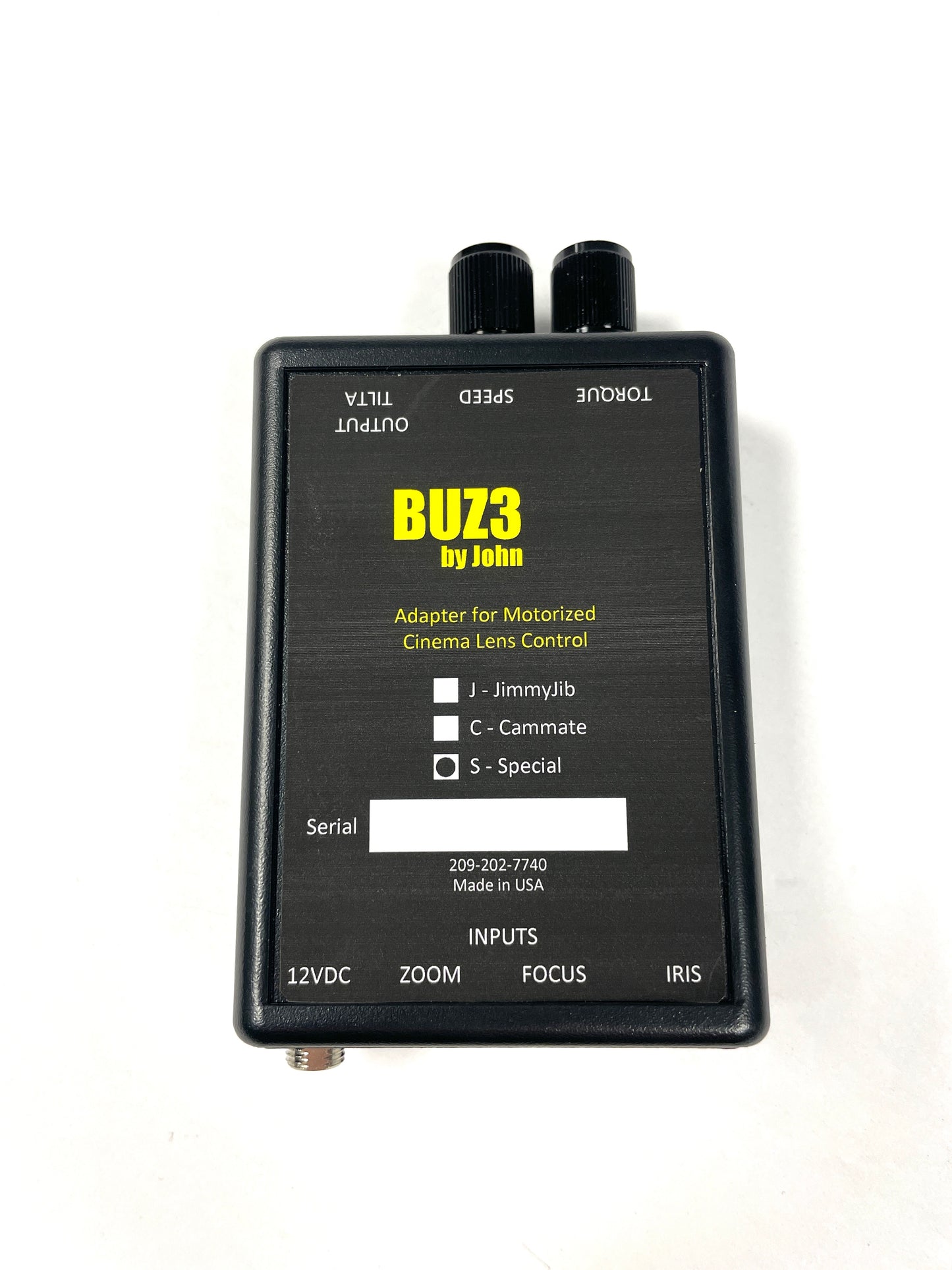

The ‘all new for 2024’ BUZ3 Box, that supports Zoom, Focus AND Iris. This small box, about the size of a pack of cigarettes, connects to your 3 pin zoom potentiometer and your 3 pin focus pot and iris pot. It converts these inputs to up to 3 Tilta Nucleus M motors via a single 7 pin LEMO output connector.The BUX Box receives your 12 volt source into a 2 pin 2.1mm threaded coaxial connector and outputs it through the 7 pin Lemo to motor daisy chain.
This ‘Special Application’ version of the BUZ3 can be configured for your special controllers or applications with connectors to match your needs.
The Tilta Nucleus M motors (purchased separately) mount to your 15 or 19mm rods and can adapt to our 3/8” video lens mounting brackets. These new motors ‘auto calibrate’ to the physical extents of your lenses. You still control them as you do with your legacy controllers. You can also activate record start/stop on appropriately equipped cameras.
So you can use one, two or three motors simultaneously, whatever your application requires! Ask us about tailoring this unit to your ‘special’ application…
