BUZ3 Box for JimmyJibs
BUZ3 Box for JimmyJibs

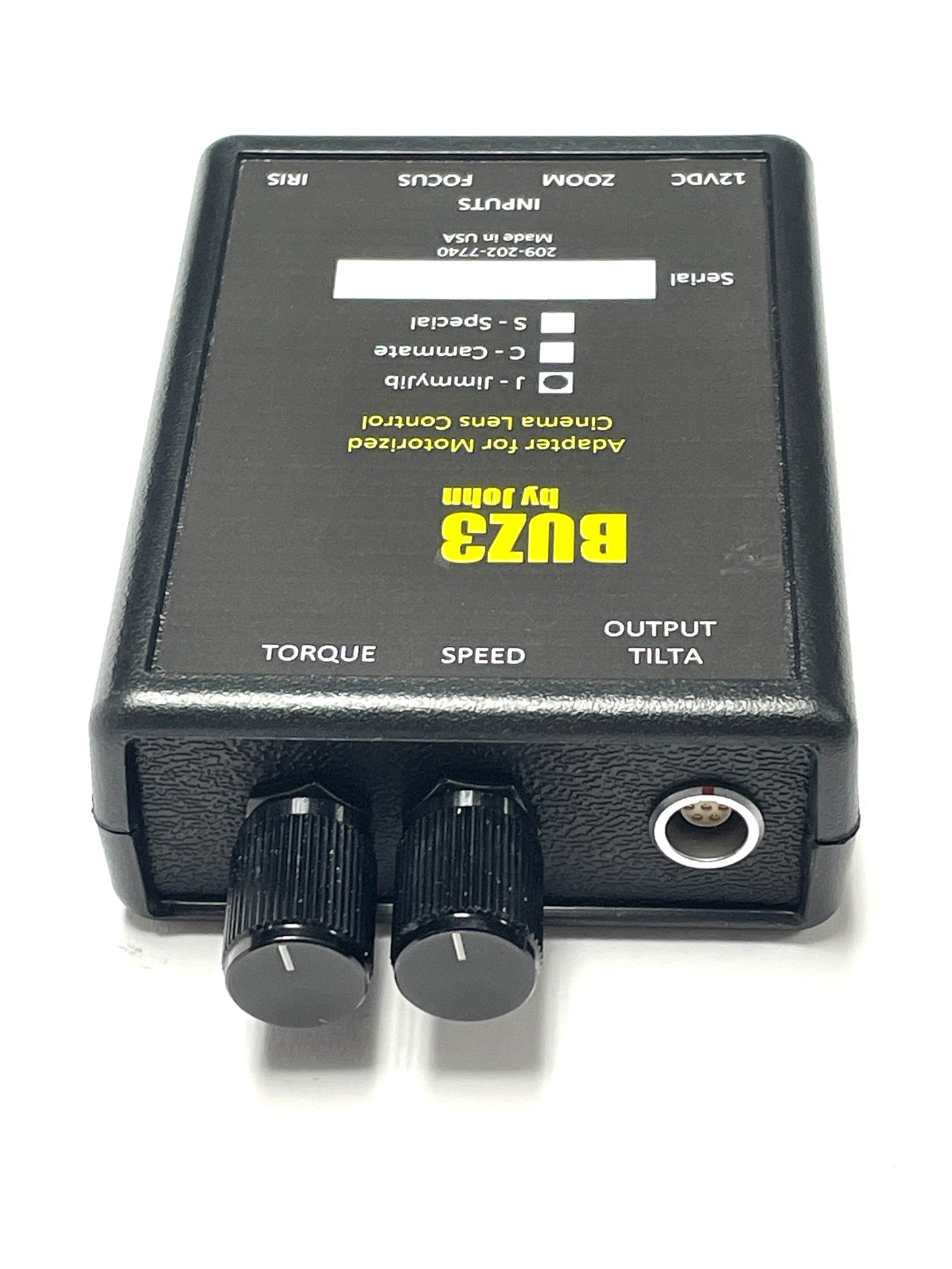

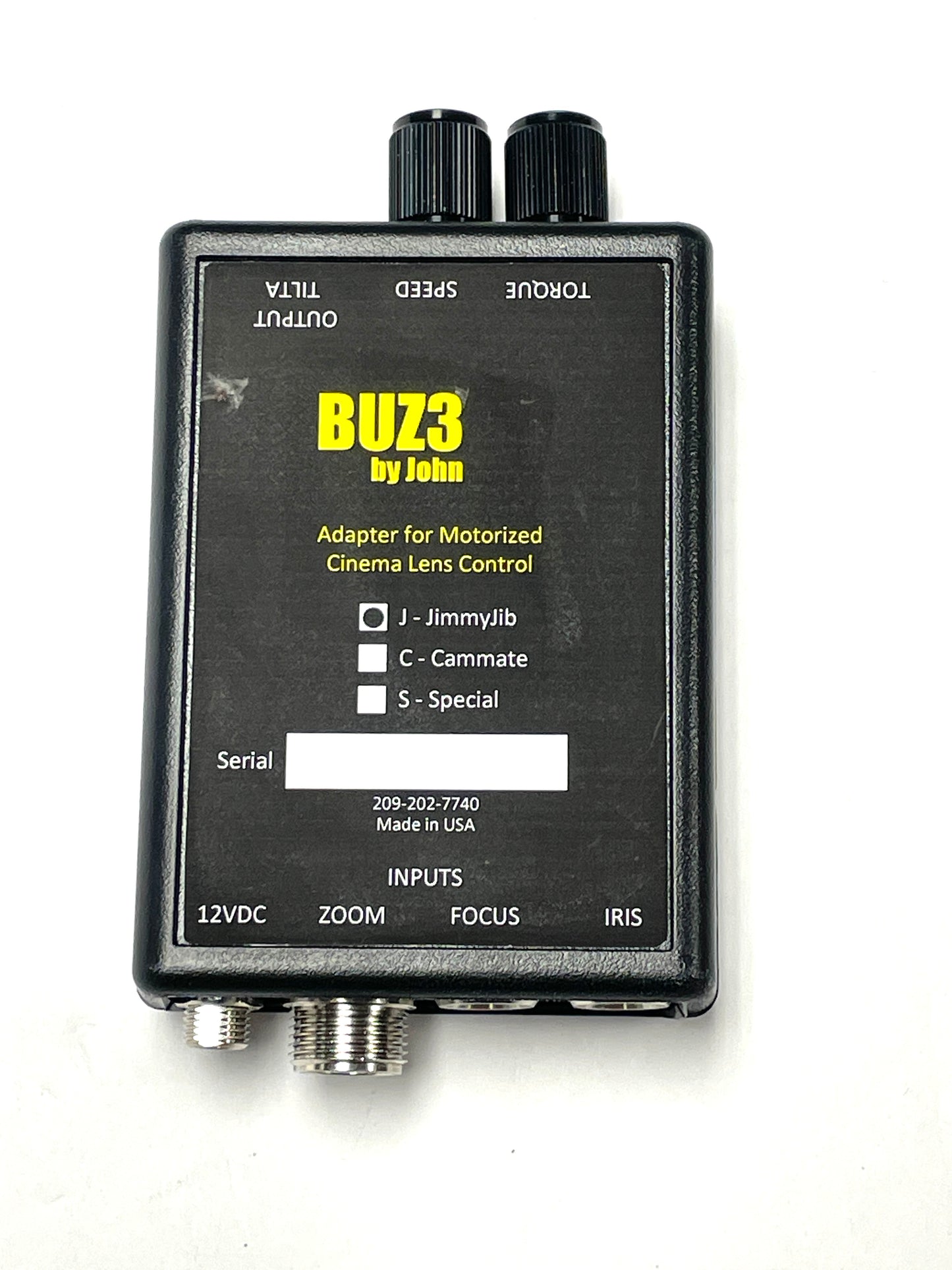

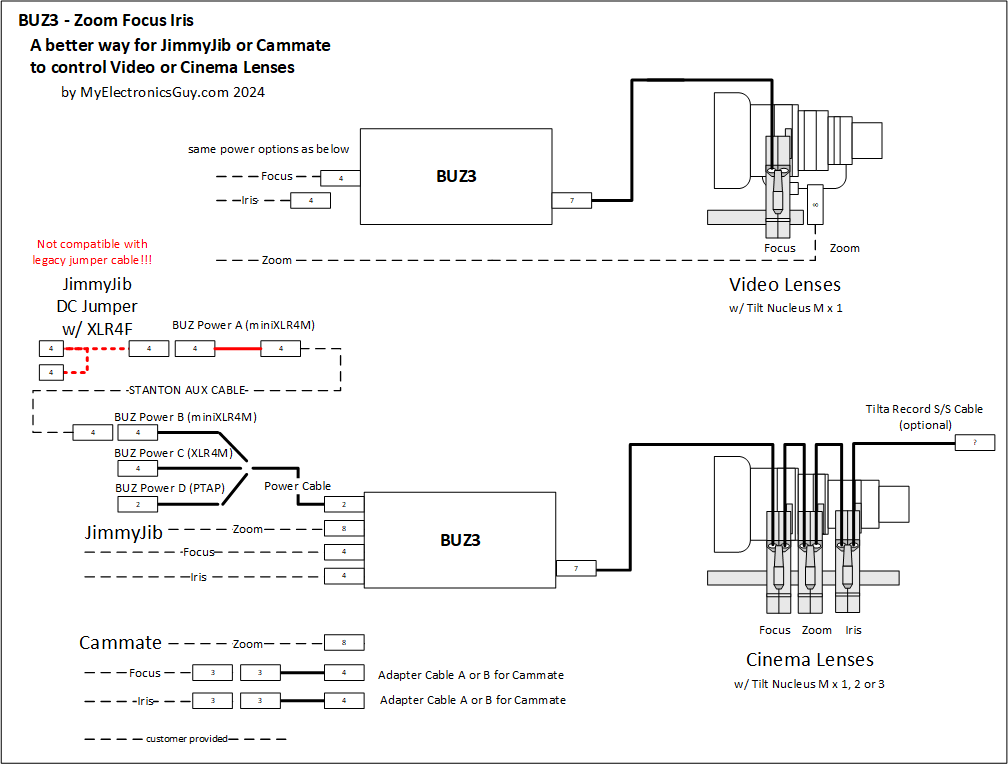

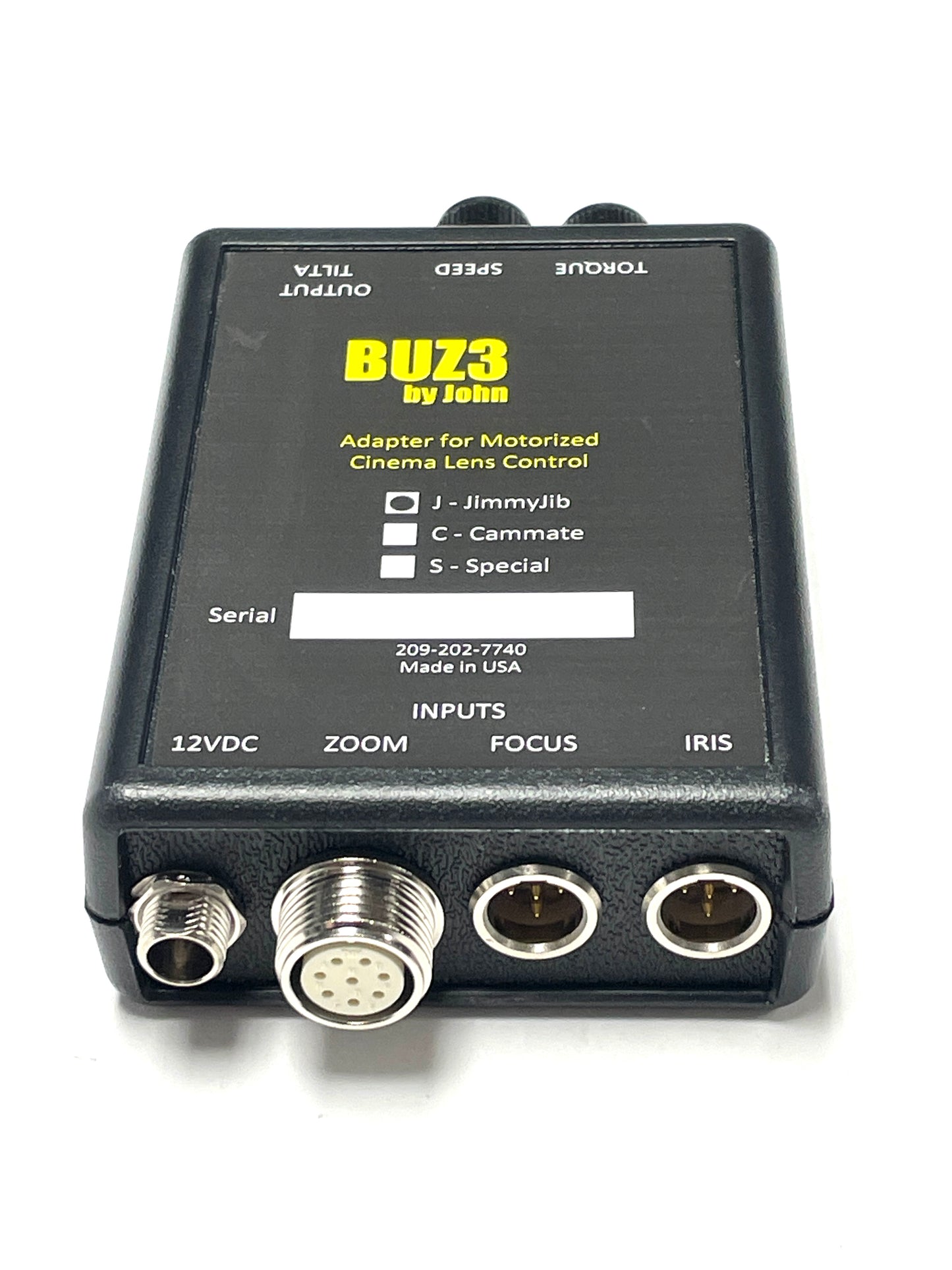

The ‘all new for 2024’ BUZ3 Box, that supports Zoom, Focus AND Iris. This small box, about the size of a pack of cigarettes, connects to your 8 pin zoom connector and your 4 pin focus and iris motor connectors. It converts these Stanton outputs to up to 3 Tilta Nucleus M motors via a single 7 pin LEMO output connector.The BUX Box receives your 12 volt source into a 2 pin 2.1mm threaded coaxial connector and outputs it through the 7 pin Lemo to motor daisy chain.
The Tilta Nucleus M motors (purchased separately) mount to your 15 or 19mm rods and can adapt to our 3/8” video lens mounting brackets. These new motors ‘auto calibrate’ to the physical extents of your lenses. You still control them as you do with your legacy controllers. You can also activate record start/stop on appropriately equipped cameras.
So you can use one, two or three motors simultaneously, whatever your application requires!
Our original BUZ box controlled only one function, ‘zoom’ and was $800 without a motor. This new system controls up to 3 motors plus record.
The Tilta Nucleus M Motors here are $300 each, or you can purchase the motors, separately, wherever you purchase video gear.
Add appropriate power adapter cable(s).
Versions also available for Cammate systems (C) and raw potentiometers and special applications (S).
https://cdn.shopify.com/s/files/1/0851/4083/2547/files/BUZ3_Brochure_Rev_1a.pdf?v=1706580409https://cdn.shopify.com/s/files/1/0851/4083/2547/files/BUZ3_Brochure_Rev_1a.pdf?v=1706580409https://cdn.shopify.com/s/files/1/0851/4083/2547/files/BUZ3_Brochure_Rev_1a.pdf?v=1706580409
